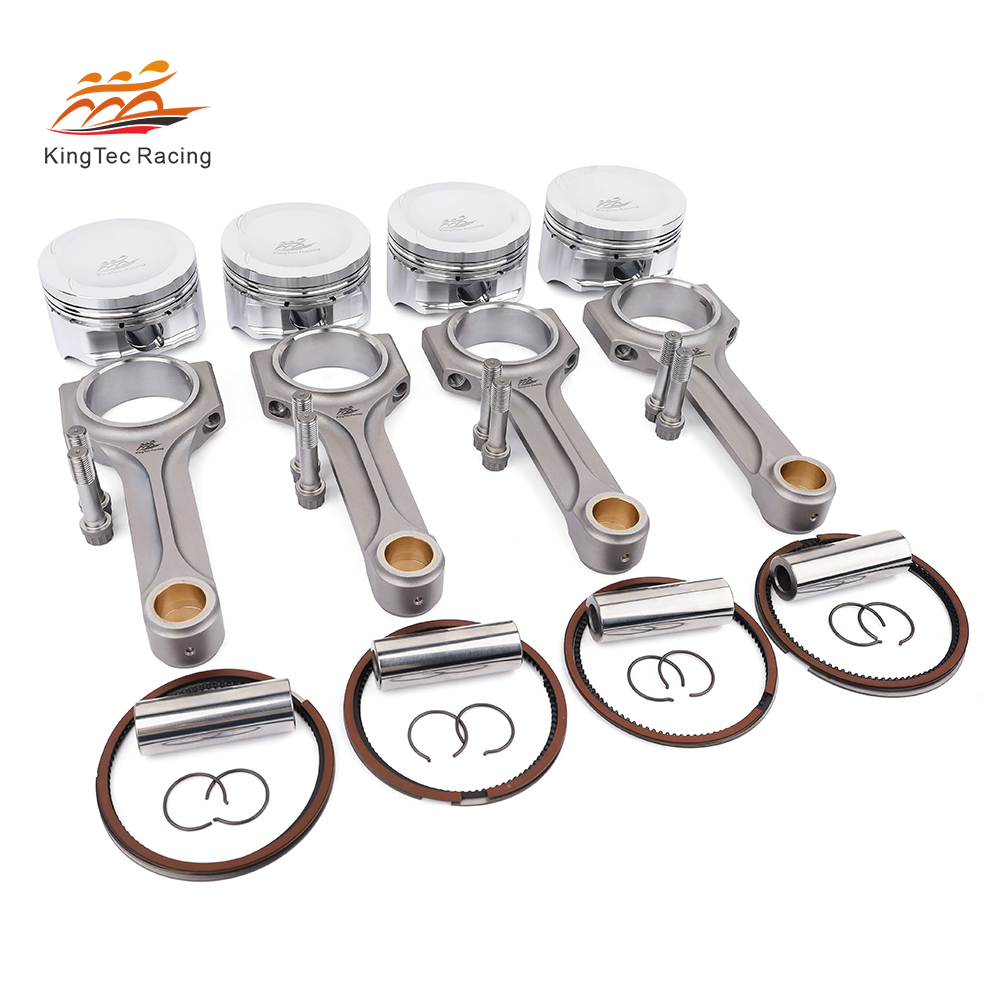

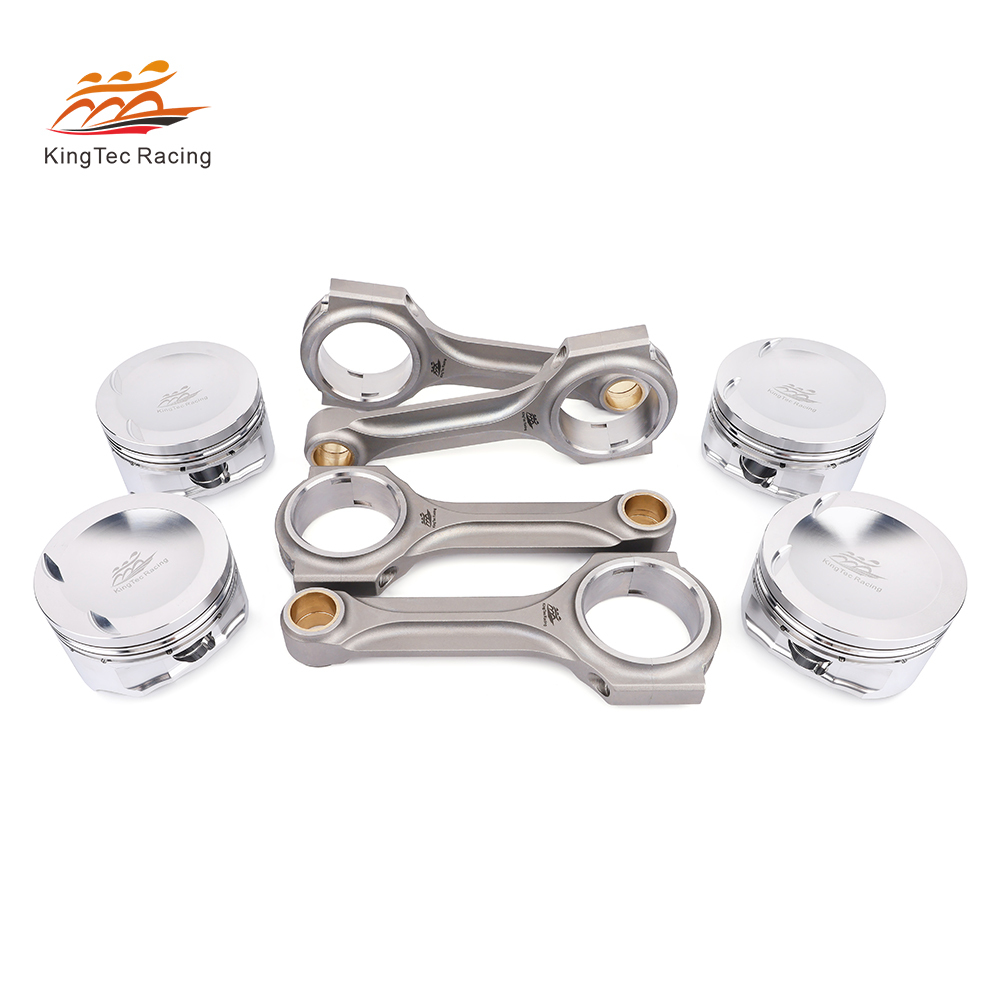

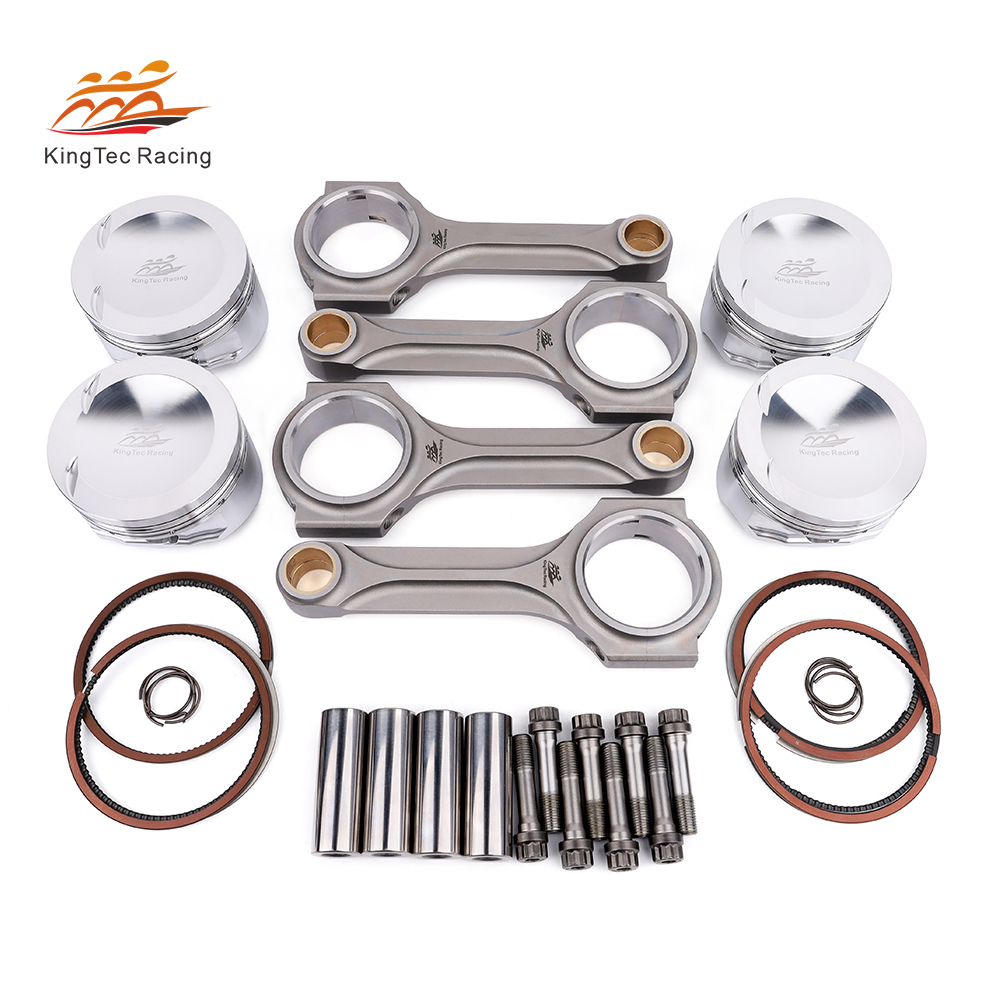

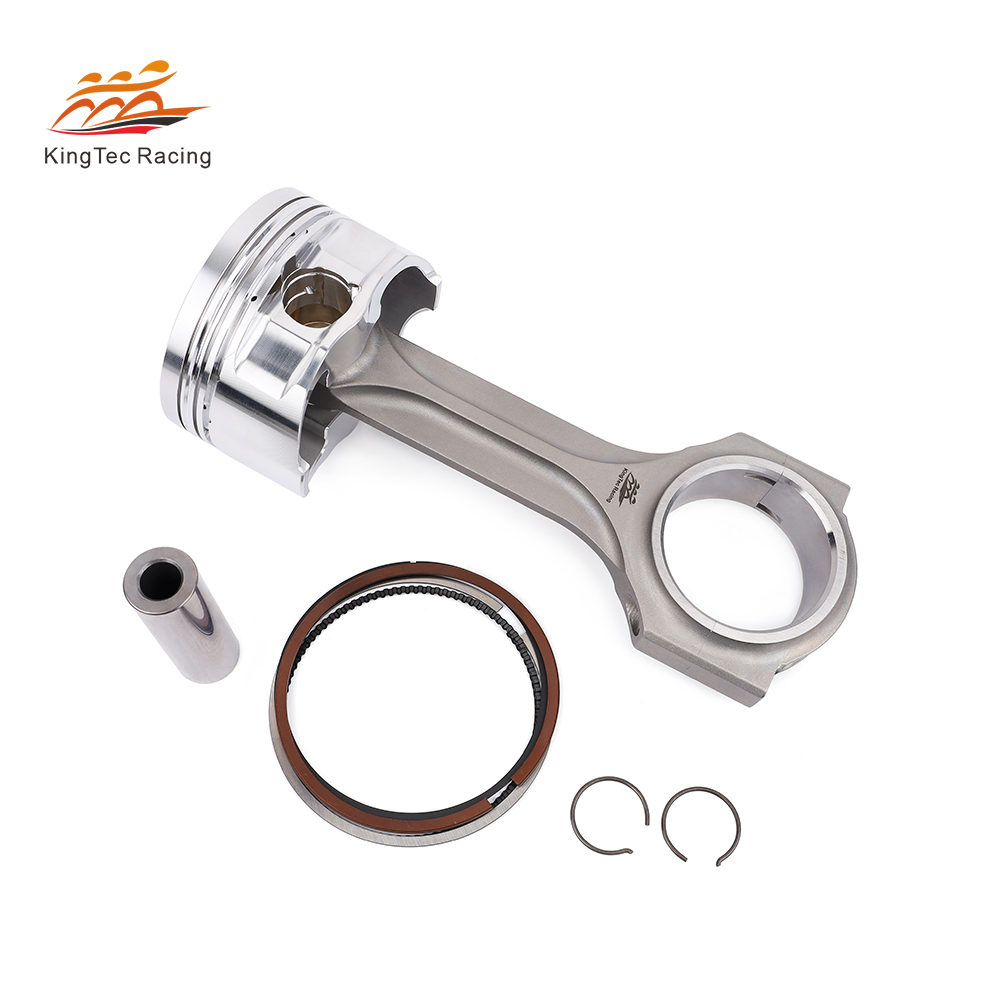

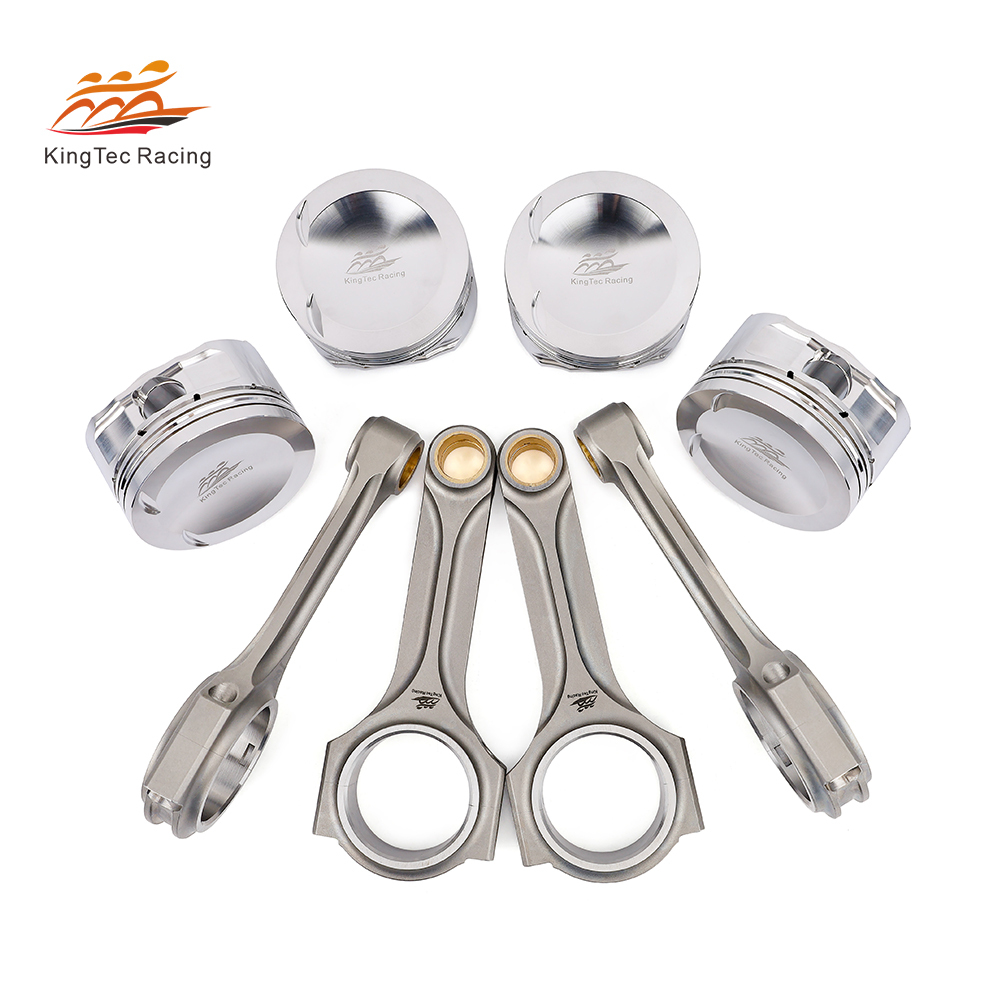

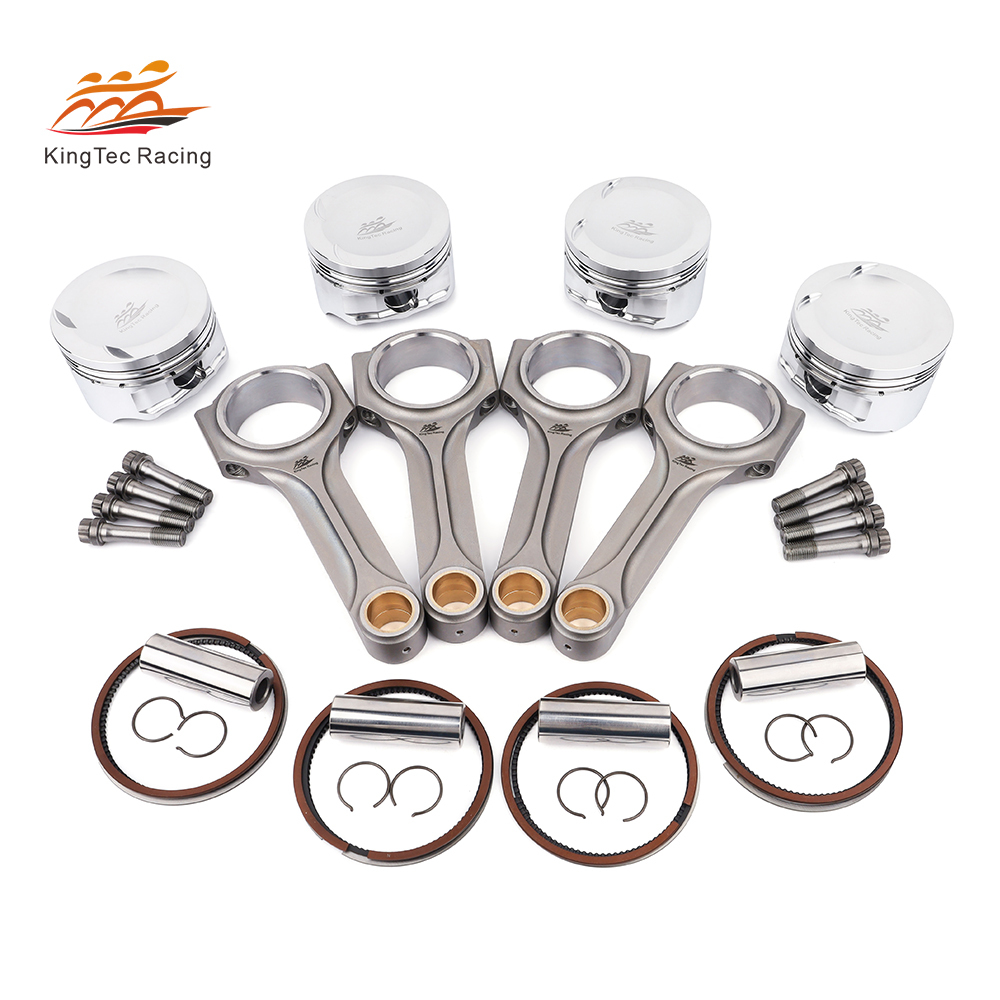

EA113 2.0 TFSI forged pistons and rods
Pictures only for reference
Forged Connecting Rods
- Materials: 4340 (40CrNiMoA) Aircraft quality steel for Higher strength.
- Testing : Magnafluexed, X-Rayed / Sonic Testing for higher Quality.
- Sizes : CNC machined all Sizes and Angles for More precise.
- Shape: X beam Design tuff Shape for Lighter Weight.
- Surface : Shot-peened surfaces to relieve stress.
- Balancing: Well balanced Weight in set +/-1.5g.
- Warranty: Quality Warranty with ARP bolts.
Forged pistons
- 4032 forged aluminum for high horsepower.
- Heat resistant with low expansion characteristics.
- Pin fitted, balanced and inspected before shipping.
- Precision CNC machining technology ensures extreme quality.
| Brand |
KTKROD |
| Connecting Rod Material |
4340 Steel Alloy |
| Piston Material |
4032 Aluminum Alloy |
| Piston Diameter |
82.5mm |
| Compression Ratio (CR) |
10:1 |
| Compression Height |
29.5mm |
| Piston Pin |
20mm |
| Piston Ring |
Including |
| Beam Type |
X Beam |
KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.
More professional and skilled staff.
More advantaged and managed machines.
Our Pursuit: Better Price, Better Quality, Better Service.
Our Promise: More Precise, More Quicker, More Satisfying.
Fits forAudi A3 8P 2.0 TFSI EA113Audi A4 B7 2.0 TFSI EA113Audi A5 2.0 TFSI EA113Audi A6 2.0 TFSI EA113Audi TT 2.0 TFSI EA113Seat Altea 2.0 TFSI EA113Seat Exeo 2.0 TFSI EA113Seat Leon EA113 2.0 TFSISeat Toledo EA113 2.0 TFSIVW Jetta MK5 EA113 2.0 TFSIVW Golf MK5 EA113 2.0 TFSIVW Passat B6 EA113 2.0 TFSIVW Scirocco EA113 2.0 TFSIVW Tiguan EA113 2.0 TFSI
