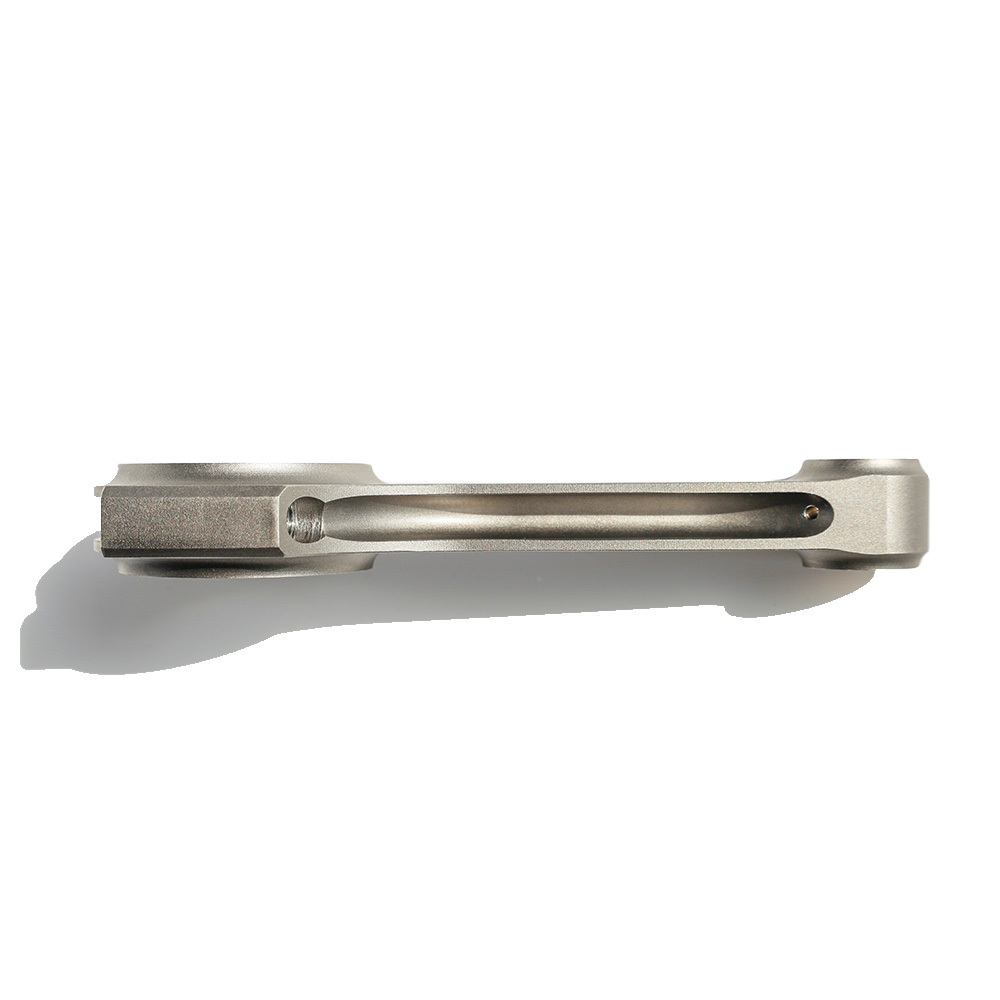

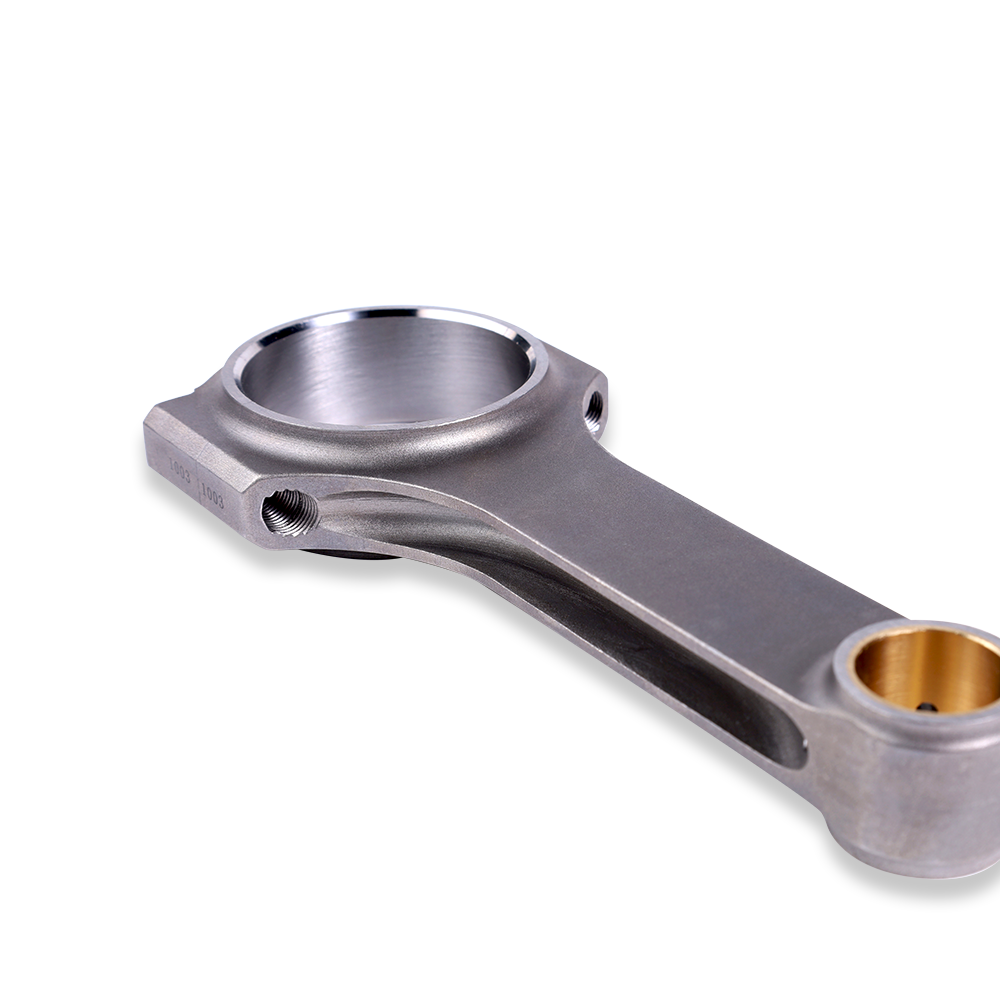

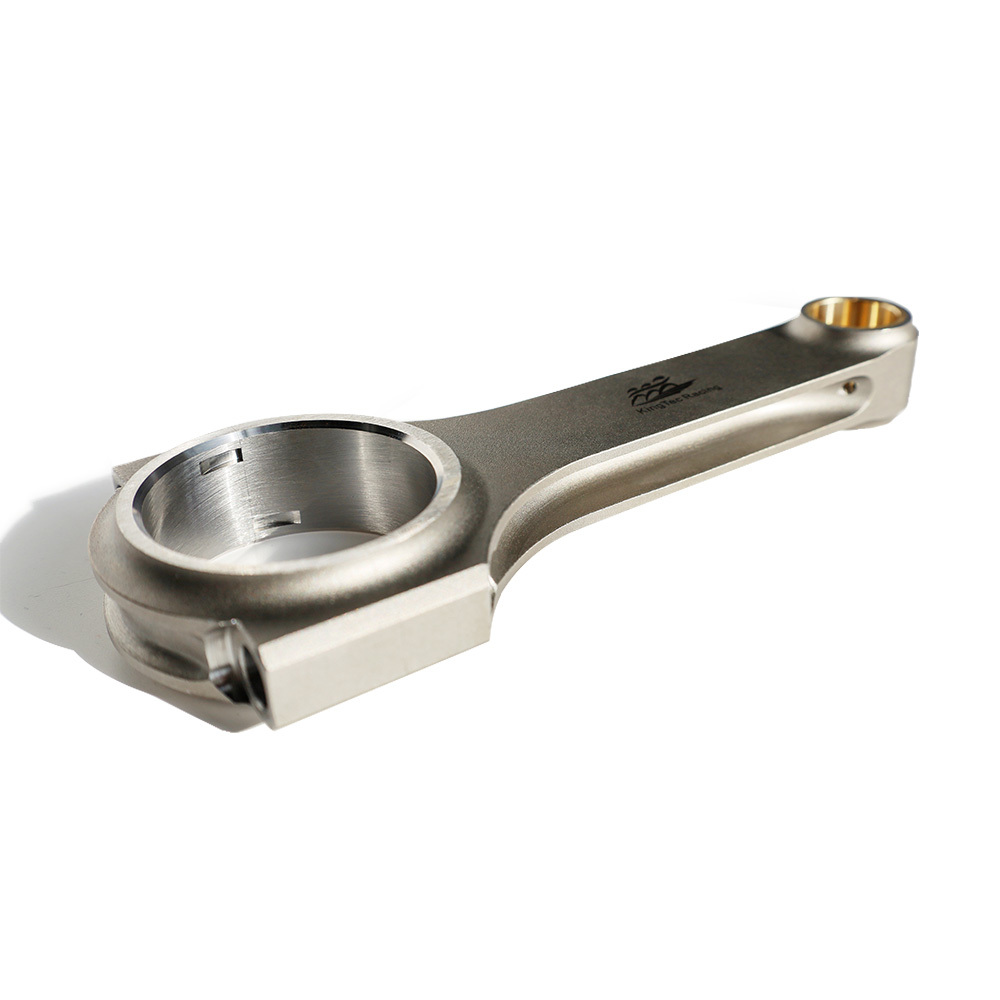

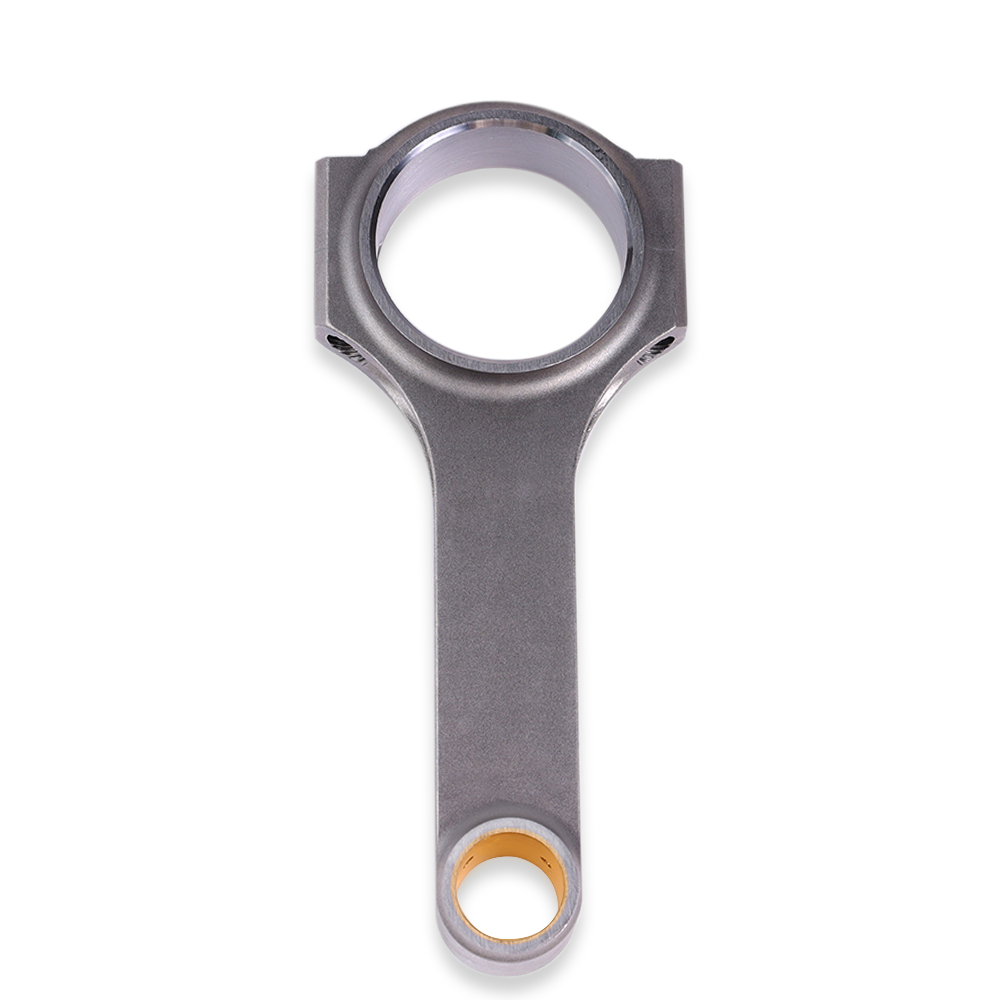

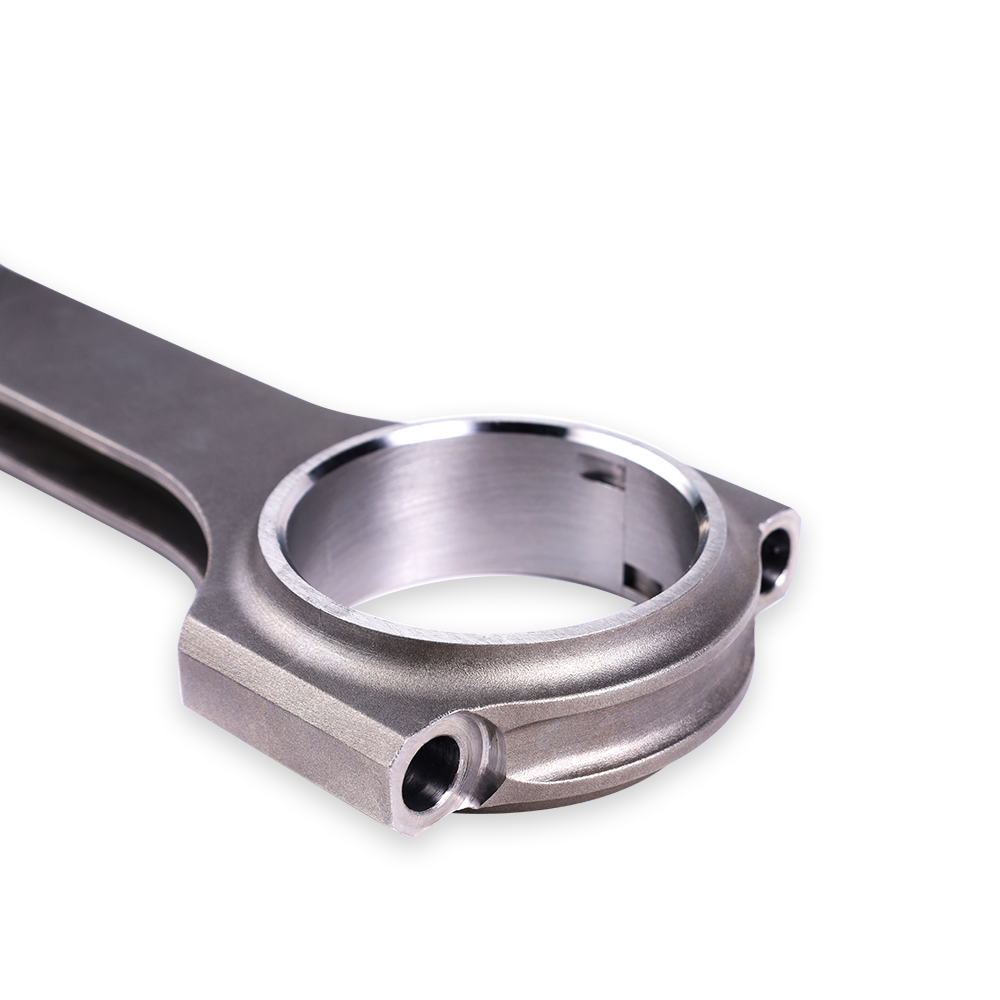

Forged performance 4340 steel connecting rods for Suzuki GSX-R1000

Forged performance 4340 steel connecting rods for Suzuki GSX-R1000

• 4340 forged steel to support higher horsepower.
• Magnaflux Inspection to ensure the high-quality standard.
• H-Beam Shape to keep the connecting rods relatively light.
• Optimal balancing for weight matched sets of ± 1.5 grams.
• Multi Stage Heat Treatment for maximum strength and dimensional stability.

KingTec Racing (Wuxi) Co., Ltd. is focus on R&D high performance racing cars spare parts for more than 17 years.

More professional and skilled staff.

More advantaged and managed machines.

Our Pursuit: Better Price, Better Quality, Better Service.

Our Promise: More Precise, More Quicker, More Satisfying.

Application

Compatible for Suzuki GSX-R1000 2005-2008
Compatible for Suzuki GSX-R1000 2001-2004 K1 K2 K3 K4


Specification

Performance Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 4 Pieces a set

Bolts: Including ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: 5/16"

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 7000rpm

warranty: one year


Dimensions

Center to center length: 111mm

Big end diameter: 38mm

Small end diameter: 15mm/16mm

Big end width: XX

Small end width: XX

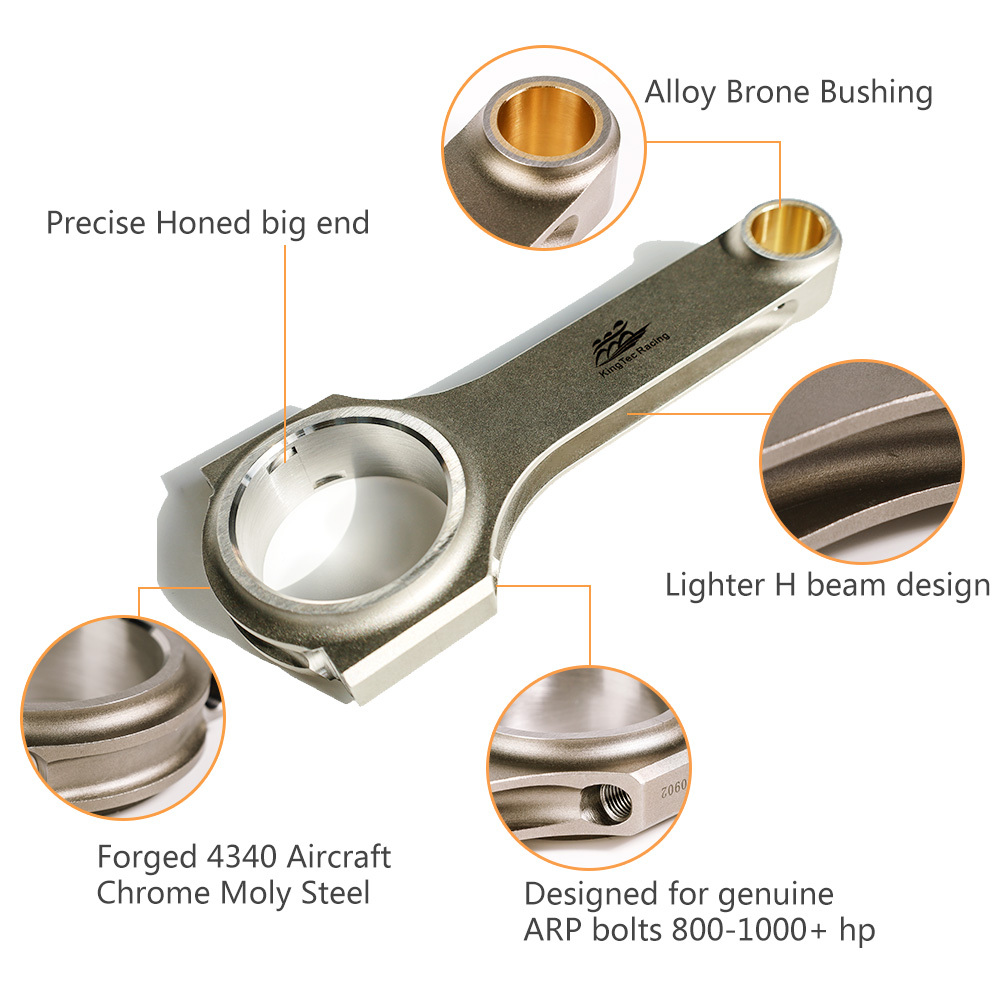

Feature

* Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

* Designed and processed by CNC machine.

* All big and small ends are finished with SUNNEN honing machine

* Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

* 100% X-rayed, sonic tested and magnafluxed

* Multi-stage heat treated

* Shot peened to relieve stress

* Come with the bronzed bushing suitable for the floating piston pin


Note

* Professional installation is highly recommended (No Instruction Included)

* Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

* Learn more about CUSTOM SERVICE
